Microlit ULTIMUS Bottle Top Dispenser
Microlit ULTIMUS Bottle Top Dispenser

Microlit ULTIMUS Bottle Top Dispenser

with Dual Inlet® Technology

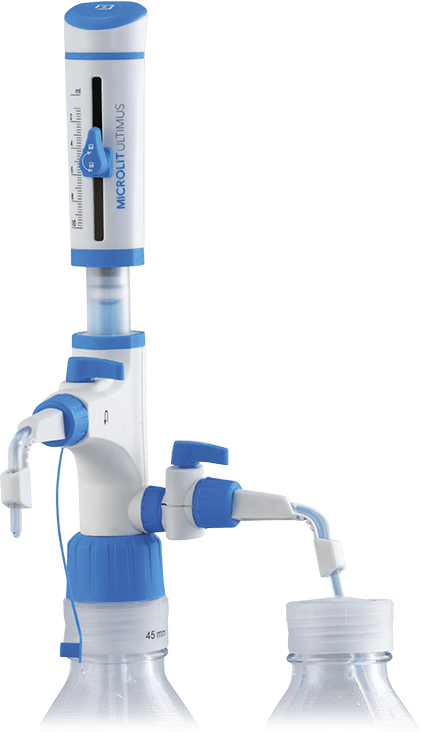

MICROLIT ULTIMUS is a Bottle Top Dispenser (BTD) that works on Dual Inlet Technology®. It offers a sophisticated blend of features and functionality, along with four modes of operation.

  • Available in Six Unique Volume Ranges

Description

MICROLIT ULTIMUS is a Bottle Top Dispenser (BTD) that offers a sophisticated blend of features and functionality. Built by our in-house team of product design engineers, it uses Dual Inlet®, an award- winning technology patented in India, the EU and the US.

It offers 4 liquid handling modes – rinsing, dilution, refilling & purging without dismounting the dispenser.

MICROLIT ULTIMUS also features two product innovations: EasyKnob® and FlexiNozzle® that enhance its ease of use and flexibility.

Designed with ergonomics and intuitive handling in mind, it exhibits excellent chemical compatibility and helps in achieving precision with reliability in practical laboratory environments.



Modes of Operation

  • Standard Dispensing: Knob A – Open, Knob B – Closed
    In this mode, the dispenser dispenses the liquid normally into the receiver from the bottle it is mounted on.
  • Purging: Knob A – Closed, Knob B – Closed
    In this mode, the liquid is re-circulated into the same bottle on which the dispenser is mounted. This process removes the air from the dispenser, without wasting any reagent.

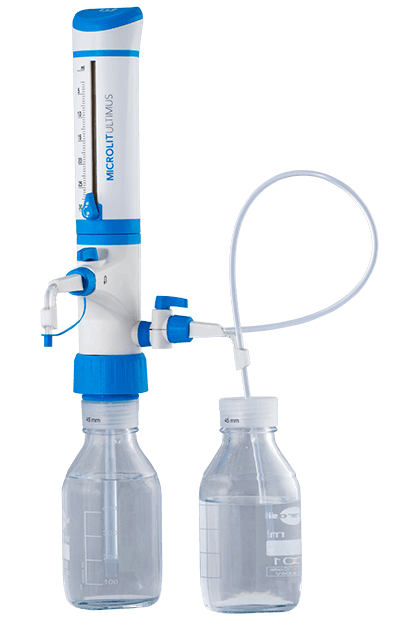

  • Dilution/Rinsing/Second Liquid Dispensing: Knob A – Open, Knob B – Open
    In this mode,
    the liquid from a second source can be dispensed into the receiver. The second liquid can be distilled water, thus allowing the user to rinse the instrument without dismounting it or dilute the reagent within the receiver.
  • Bottle Refilling: Knob A – Closed, Knob B – Open
    In this mode, the liquid from a second source
    can be used to refill the bottle without dismounting the dispenser.
50% LikesVS
50% Dislikes
  • Change Volume with EasyKnob®
  • EasyKnob® is a specially designed volume adjustment knob that allows 180° rotation for easy and
    effortless volume setting.
  • Move Effortlessly with a PTFE Piston
  • The instrument is equipped with a PTFE Piston with an ETP O-Ring. It facilitates smooth and
    effortless movement and ensures high chemical compatibility.
  • Forget Dismounting with Dual Inlet®
  • Dual Inlet®, an award winning patented technology
    enables 4 liquid handling modes without dismounting the dispenser.
  • Dispense Easily with FlexiNozzle®
  • MICROLIT ULTIMUS comes with FlexiNozzle®
    an adjustable delivery nozzle. It offers a high degree of flexibility, facilitating easy dispensing in demanding laboratory conditions.
  • Work Flexibly with a 360° Adapter
  • A specially designed Adapter allows 360° rotation, facilitating complete work
    flexibility.
  • Assured Quality with ISO 8655 Conformed Calibration
  • MICROLIT ULTIMUS is calibrated in an ISO 17025 accredited laboratory according
    to ISO 8655 standards. A calibration certificate is included inside the product package. A calibration tool is also included for
    quick in-lab recalibration.
  • Work with a Comprehensive Volume Range
  • MICROLIT ULTIMUS is available in six unique volume ranges.
    *Refer the table in technical specifications.
  • Autoclaving Parameters
  • MICROLIT ULTIMUS is fully autoclavable at
    121°C and 15 psi for a duration of 10-15 minutes.
Model No. Vol. Range Increment Accuracy CV
± % ± ml ± % ± ml
ULT-2.5 0.25-2.5 ml 0.05 ml 0.5 0.0125 0.2 0.005
ULT-5 0.5-5 ml 0.1 ml 0.5 0.025 0.2 0.01
ULT-10 1-10 ml 0.2 ml 0.5 0.05 0.1 0.01
ULT-30 2.5-30 ml 0.5 ml 0.5 0.15 0.1 0.03
ULT-60 5-60 ml 1.0 ml 0.5 0.3 0.1 0.06
ULT-100 10-100 ml 2.0 ml 0.5 0.5 0.1 0.1

The error limits (Accuracy and Coefficient of Variation) mentioned above are in accordance with the nominal capacity (or maximum volume) indicated on the instrument. These are obtained by using the instrument with distilled water at equilibrium, the ambient temperature of 20 °C while operating it smoothly and steadily. The error limits are in accordance with DIN EN ISO 8655-5.

Accessories

  • Adapters

    The instrument comes with five adapters that comfortably fit most laboratory reagent bottles. The available sizes are – 28 mm, 32 mm, 36 mm, 40 mm and 45 mm.

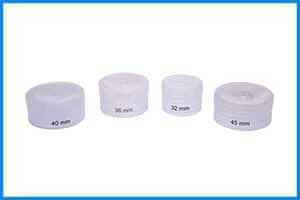

  • Reservoir Covers

    For the second bottle, an additional set of four reservoir covers is provided in the sizes: 32 mm, 36 mm, 40 mm and 45 mm.

  • Extendable Tube

    MICROLIT ULTIMUS comes with a Telescoping Tube that can be adjusted according to a variety of bottle sizes.
