Microlit E-DISPENSER
E-Dispenser is an electronic dispenser cum electronic burette that performs titration functions with the same accuracy and reliability as traditional burettes, with automated enhanced control. It offers various dispensing modes, including automatic dispensing, serial mode and stepper modes. Whether you’re performing a routine experiment or complex titration, this device adapts to your needs seamlessly.
Enquire NowDescription
Uniquely designed for ergonomic use and intuitive handling in mind, it is widely used in industries like Pharmaceuticals, Environmental Monitoring, Food & Beverages, Cosmetics and Personal Care, Oil and Gas Industry and many more. The E-Dispenser offers a wide range of volume settings, from microliter to millilitre quantities. Whether you’re working with small-scale samples or larger volumes, it delivers precision at every step.
Download Catalogue
Operation Manual
-
Dual Functionality Electronic dispenser cum electronic burette
performs titration functions with same accuracy and reliability as traditional burettes, with automated
enhanced control. -
Multiple Dispensing ModesIt offers various dispensing modes,
including automatic dispensing, serial mode and stepper modes. Whether you’re performing a routine
experiment or complex titration, this device adapts to your needs seamlessly -

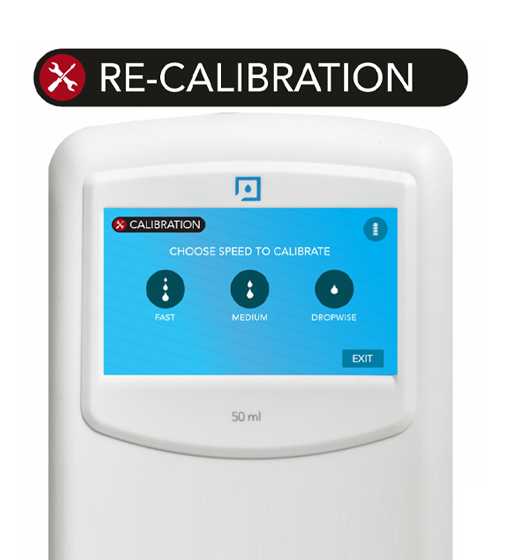

Electronic ControlsIntuitive electronic control system allows users
to set and adjust volume with ease. The 4-inch TFT touchscreen interface ensures quick and simple
adjustments to meet specific requirements. -
Re-direct Reagents with Recirculation Mode
Recirculation Mode prevents the loss of reagents during purging by re-directing them into the
mounted
bottle and facilitates bubble free dispensing. -
Memory Function E-DISPENSER stores upto 10 programs each for
serial and stepper dispensing
and allows users to delete individual readings or all at once. In the E-BURETTE one can store upto 20
readings locally. -
Dispense Easily with Adjustable FlexiNozzle ®
The adjustable nozzle offers a high degree of flexibility in both the horizontal and vertical directions,
facilitating easy dispensing in demanding laboratory conditions for hand held dosing. -

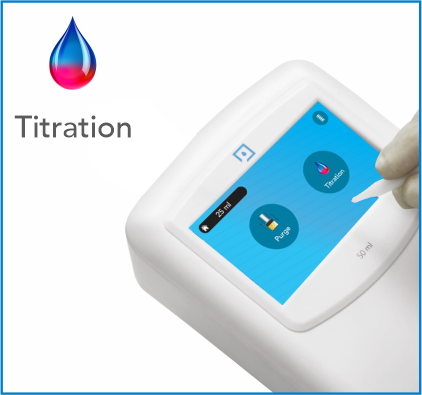

Perform Quick Titrations Stylus operated user-friendly TFT touchscreen guides quick and
accurate titrations and displays
numeric data up to the second decimal. -

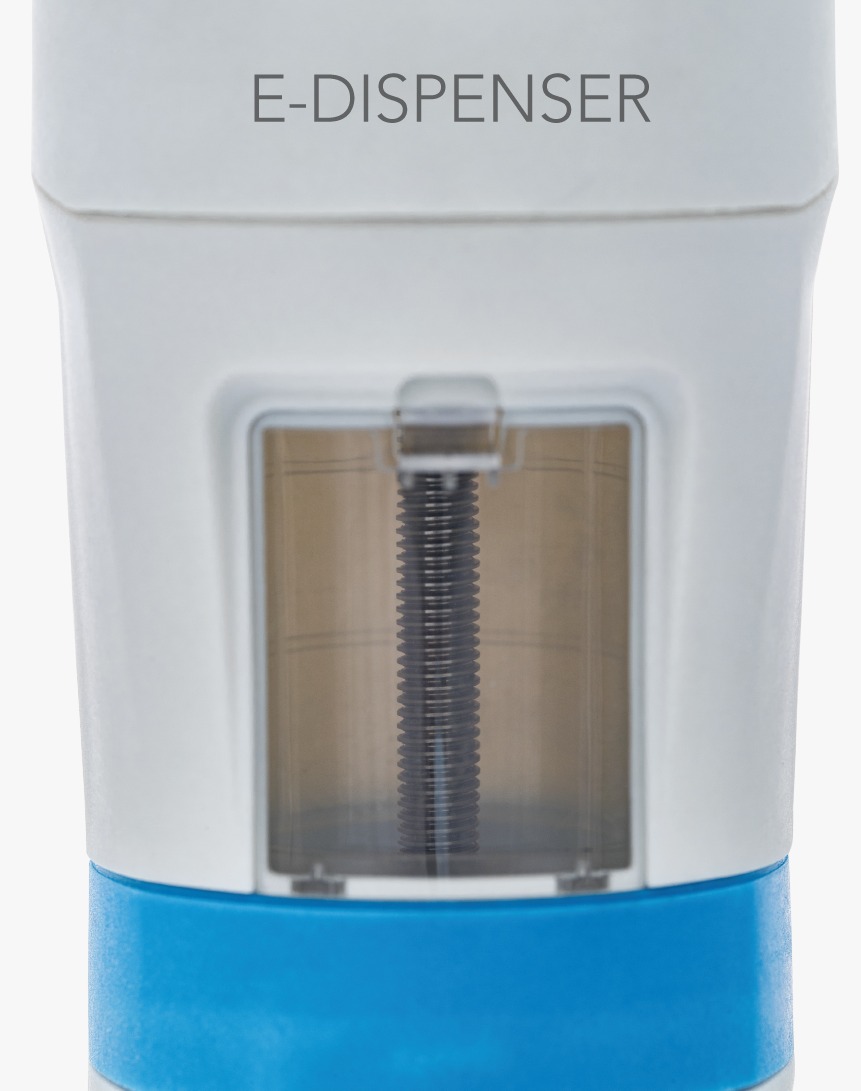

Precision Dispensing Equipped with a high-precision motor controlled piston, it ensures
accurate volume delivery and reproducibility, with tolerance levels that exceed industry standards -
Multiple Volume SettingsThe E-DISPENSER offers a wide range of volume settings, from
microliter to millilitre quantities. Whether you’re working with small-scale samples or larger volumes, it
delivers precision at every step. -
Ergonomic Design
Uniquely designed for ergonomic use and intuitive handling in mind, is widely
used in industries like Pharmaceuticals, Environmental Monitoring, Food & Beverages and many more.
|
Model No
|
Capacity (ml)
|
Increment
|
Accuracy | CV | ||
| ±% | ±ml | ±% | ±ml | |||
| ED-10 | 10 | 0.005 ml | 0.10 | 0.01 | 0.1 | 0.01 |
| ED-25 | 25 | 0.01 ml | 0.07 | 0.0175 | 0.05 | 0.0125 |
| ED-50 | 50 | 0.01 ml | 0.05 | 0.025 | 0.02 | 0.010 |
Accessories
-
Amber Coloured Window
The instrument’s transparent acrylic window can be swapped with an amber colored window for use with chemicals/reagents that are sensitive to light.
-
Adapters
The instrument comes with five adapters that comfortably fit most laboratory reagent bottles. The available sizes are – 28 mm, 32 mm, 38 mm, 40 mm and 45 mm.
-

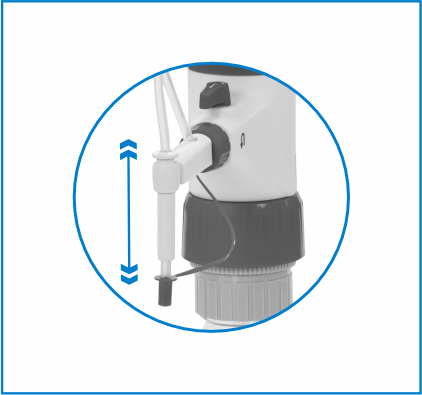

Extendable Tube
A Telescoping Tube that can be adjusted in length according to a variety of bottle sizes is provided as an inside-the-box accessory.
-

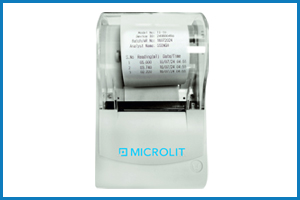

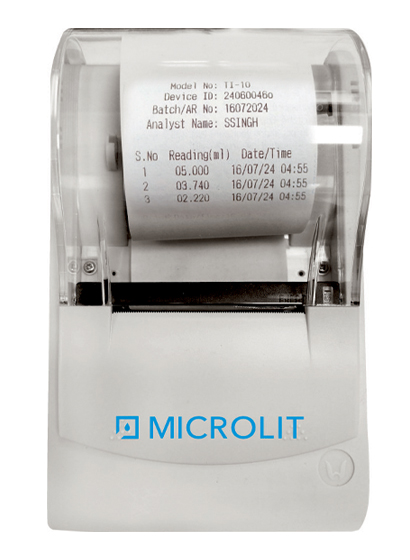

Portable Printer Integration:
We are introducing a portable printer integration. This feature will enable printing upto 20 readings at once, complete with real-time date and time stamps, providing organized documentation of results.
-

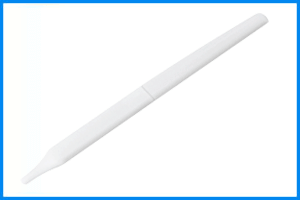

Stylus
MICROLIT E-DISPENSER comes with a sleek hand-held stylus that assists in performing touch operations on the control panel with ease.
