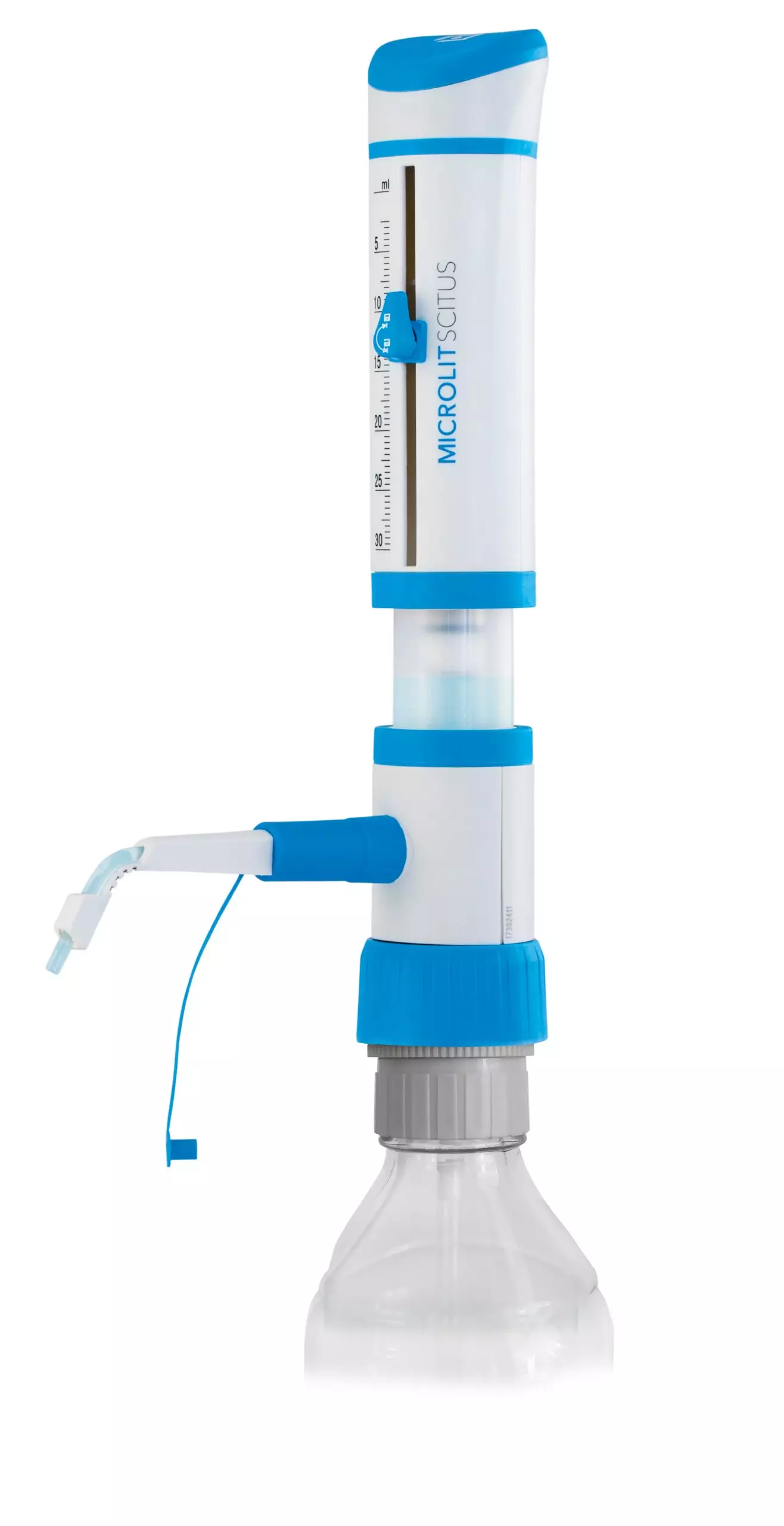

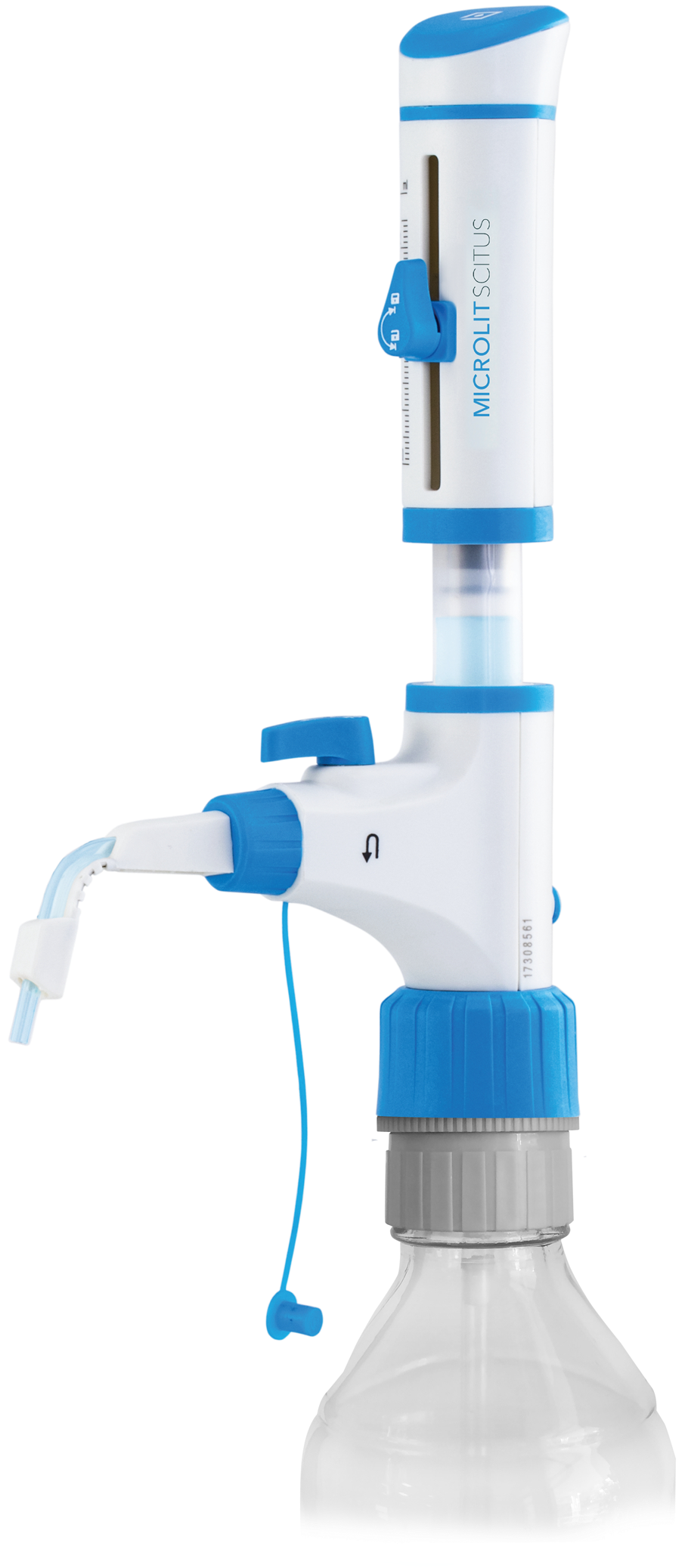

Microlit SCITUS Bottle Top Dispenser
with Recirculation Valve and Springless ValveTM Technology
MICROLIT SCITUS is a Bottle Top Dispenser (BTD) that works on Recirculation Valve and Springless ValveTM Technology. It is a high precision liquid handling instrument that offers a sophisticated blend of features and functionality.
- Available in Six Unique Volume Ranges
Description
MICROLIT SCITUS is a Bottle Top Dispenser (BTD) that offers a sophisticated blend of features and functionality. Built by our in-house team of product design engineers, it uses Springless Valve™, an award winning technology, and Recirculation Valve for preventing loss of reagent during purging.
MICROLIT SCITUS also features two product innovations: EasyKnob™ and FlexiNozzle™ that enhance its ease of use and flexibility. Designed with ergonomics and intuitive handling in mind, it exhibits excellent chemical compatibility and helps in achieving precision with reliability in practical laboratory environments.
- Change Volume with EasyKnob™ (Marker 1) EasyKnob™ is a specially designed volume adjustment knob that allows 180° rotation for easy and effortless volume setting.
- Move effortlessly with a PTFE Piston (Marker 2) The instrument is equipped with a PTFE Piston with an ETP O-Ring. It facilitates smooth and effortless movement and ensures high chemical compatibility.
- Re-direct Liquids with Recirculation Valve (Marker 3) Recirculation Valve prevents the loss of reagents during purging by re-directing them into the mounted bottle and facilitates bubble free dispensing.
- Operate Jam-free with Springless Valve™ MICROLIT SCITUS comes with an award-winning technology, Springless Valve™, that facilitates smooth and jam-free functioning.
- Dispense Easily with FlexiNozzle™ (Marker 4) The instrument comes with FlexiNozzle™, an adjustable delivery nozzle. It offers a high degree of flexibility, facilitating easy dispensing in demanding laboratory conditions.
- Work Flexibly with a 360° Adapter (Marker 5) A specially designed Adapter allows 360° rotation, facilitating complete work flexibility.
- Assured Quality with ISO 8655 Conformed Calibration MICROLIT SCITUS is calibrated in an ISO 17025 accredited laboratory according to ISO 8655 standards. A calibration certificate is included inside the product package. A calibration tool is also included for quick in-lab recalibration.
- Work with a Comprehensive Volume Range MICROLIT SCITUS is available in six unique volume ranges. *Refer the table in technical specifications.
- Autoclaving Parameters MICROLIT SCITUS is fully autoclavable at 121°C and 15 psi for a duration of 10-15 minutes.
| Model No. | Vol. Range | Increment | Accuracy | CV | ||
|---|---|---|---|---|---|---|
| ±% | ±ml | ±% | ±ml | |||
| SCI-2.5 | 0.25-2.5 ml | 0.05 ml | 0.5 | 0.0125 | 0.2 | 0.005 |
| SCI-5 | 0.5-5 ml | 0.1 ml | 0.5 | 0.025 | 0.2 | 0.001 |
| SCI-10 | 1-10 ml | 0.2 ml | 0.5 | 0.05 | 0.1 | 0.001 |
| SCI-30 | 2.5-30 ml | 0.5 ml | 0.5 | 0.15 | 0.1 | 0.03 |
| SCI-60 | 5-60 ml | 1.0 ml | 0.5 | 0.3 | 0.1 | 0.06 |
| SCI-100 | 10-100 ml | 2.0 ml | 0.5 | 0.5 | 0.1 | 0.1 |
The error limits (Accuracy and Coefficient of Variation) mentioned above are in accordance with the nominal capacity (or maximum volume) indicated on the instrument. These are obtained by using the instrument with distilled water at equilibrium, the ambient temperature of 20 °C while operating it smoothly and steadily. The error limits are in accordance with DIN EN ISO 8655-5.
Accessories
Adapters
The instrument comes with five adapters that comfortably fit most laboratory reagent bottles. The available sizes are – 28 mm, 32 mm, 36 mm, 40 mm and 45 mm.
Extendable Tube
A Telescoping Tube that can be adjusted according to a variety of bottle sizes, is provided as an inside-the-box accessory.
