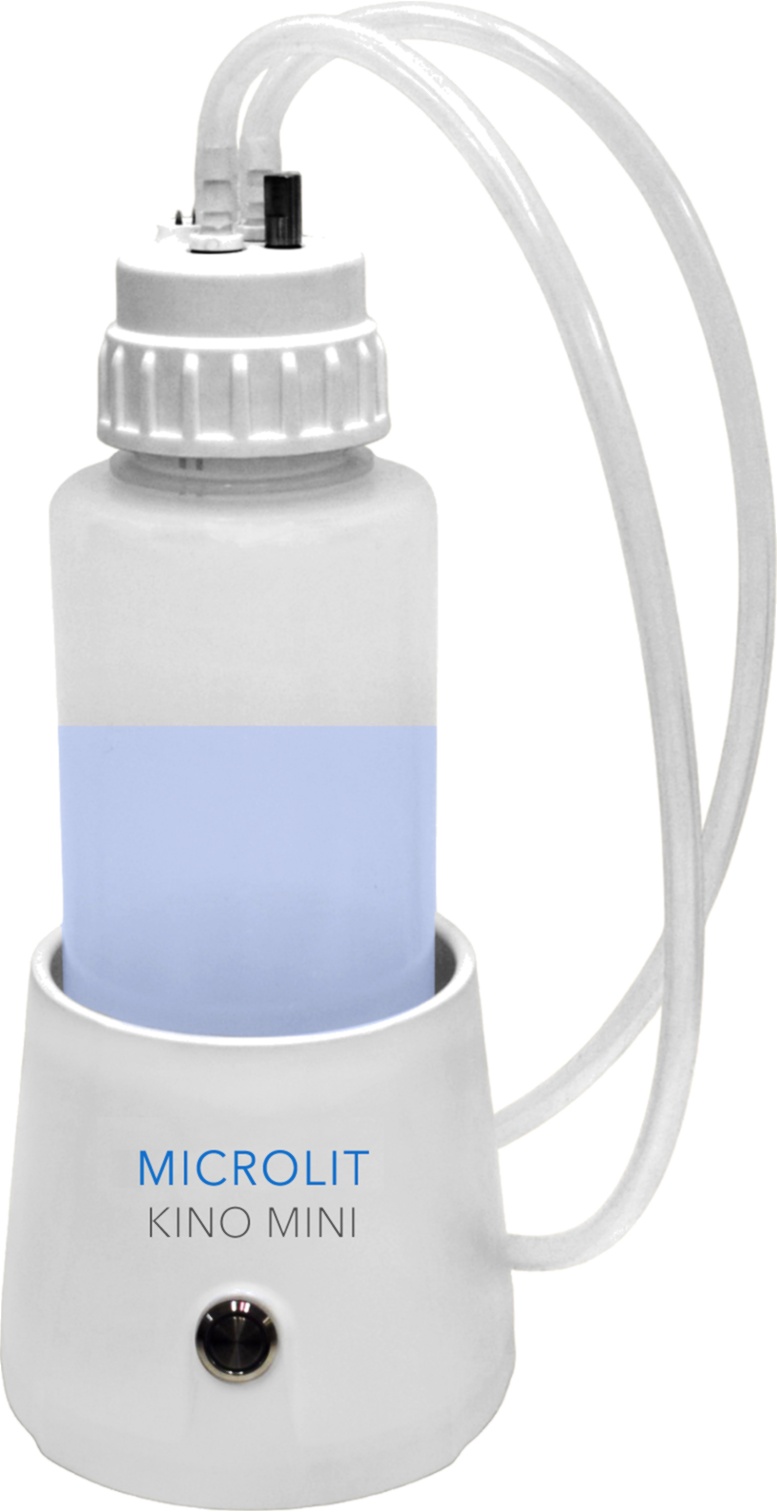

Microlit KENO MINI

Compact design for both high demand medical usage as well as convenient for quick and mobile clinical usage

Get Expert Advice

Description

MICROLIT KENO MINI Vacuum Aspirator is a compact, efficient and high-precision liquid aspiration solution designed for laboratories that demand performance within limited workspace. Built for cell culture, microbiology and routine liquid waste removal, KENO MINI delivers reliable aspiration while maintaining optimal safety and ease of use.

Engineered with a space-saving and portable design, KENO MINI is ideal for use inside biosafety cabinets and crowded lab benches. Despite its compact size, it offers powerful and consistent suction performance, ensuring smooth aspiration and improved workflow efficiency.

From a technical perspective, the system is designed to support controlled aspiration, minimizing turbulence and protecting delicate samples. Its low-noise operation enhances user comfort, making it suitable for continuous lab use. Additionally, the aspirator incorporates contamination control features, helping reduce aerosol formation and ensuring a safer working environment.

With a focus on compact performance, safety and precision, MICROLIT KENO MINI is the perfect choice for laboratories seeking a dependable and space-efficient vacuum aspiration solution.

50% LikesVS

50% Dislikes

Download Catalogue

Operation Manual

Tubing Chemical Compatibility

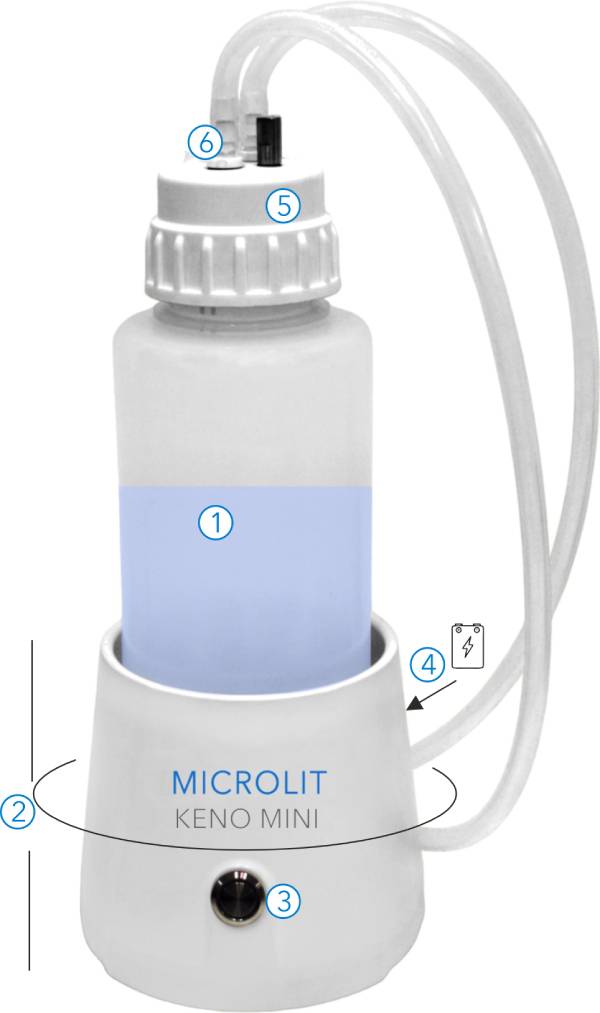

0.5L/1L Polypropylene Bottles (Marker 1): Based on requirement, various bottle sizes are available and compatible with the aspirator.
Compact and Space-Saving (Marker 2): Small foot print of the instrument minimizes the utilised bench space and perfect fit for laminar hood.
Smart Switch On/Off Button (Marker 3): Easy to switch on, set the desired vacuum and start operations.
Long Runtime on a Single Charge (Marker 4): Built-in rechargeable lithium battery enables operation without external power.
Cap with Built-in Connectors (Marker 5 & 6): It prevents droplets and aerosols from leaking and keeps system closed for operational safety

Technical Specifications of Bench Top Compact Vacuum Aspirator
Certifications	CE Certificate
IP Rating	IP41 Protection
Model No.	K-M1 & K-M0.5
Power Source (for KENO-MINI)	Built-in Rechargeable Lithium Battery
Vacuum Range	0 to -850 mbar (Adjustable)
Max flow rate in Air	15 L/min
Flow rate of liquid	23 mL/sec – 40 mL/sec
Noise at 1 meter distance	< 65 dB at maximum vacuum
Motor type	Brushless DC Motor
Collection bottle	0.5L / 1L Polypropylene
Auto Shut Off	Yes

Accessories

K-HC

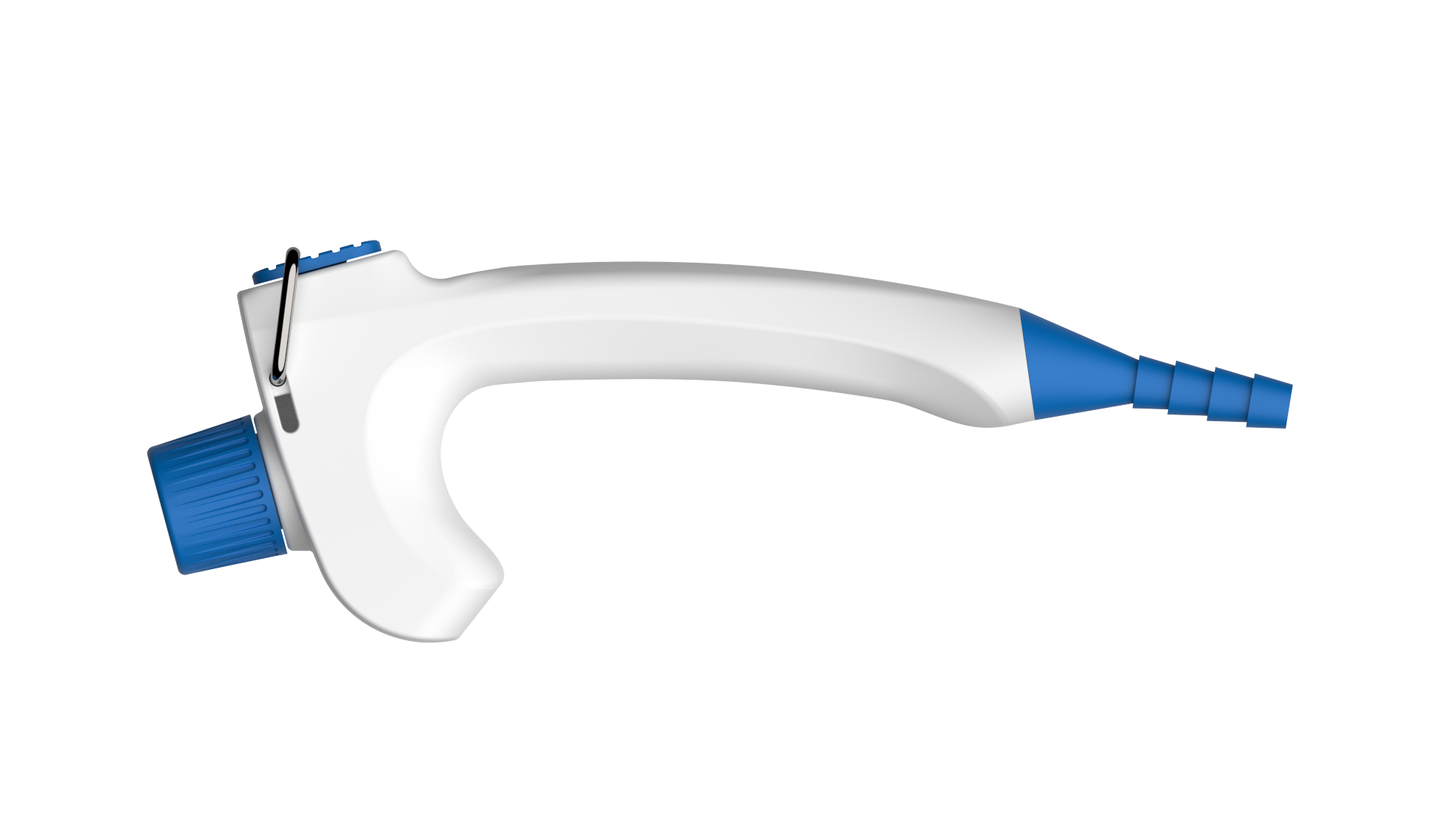

Hand Controller

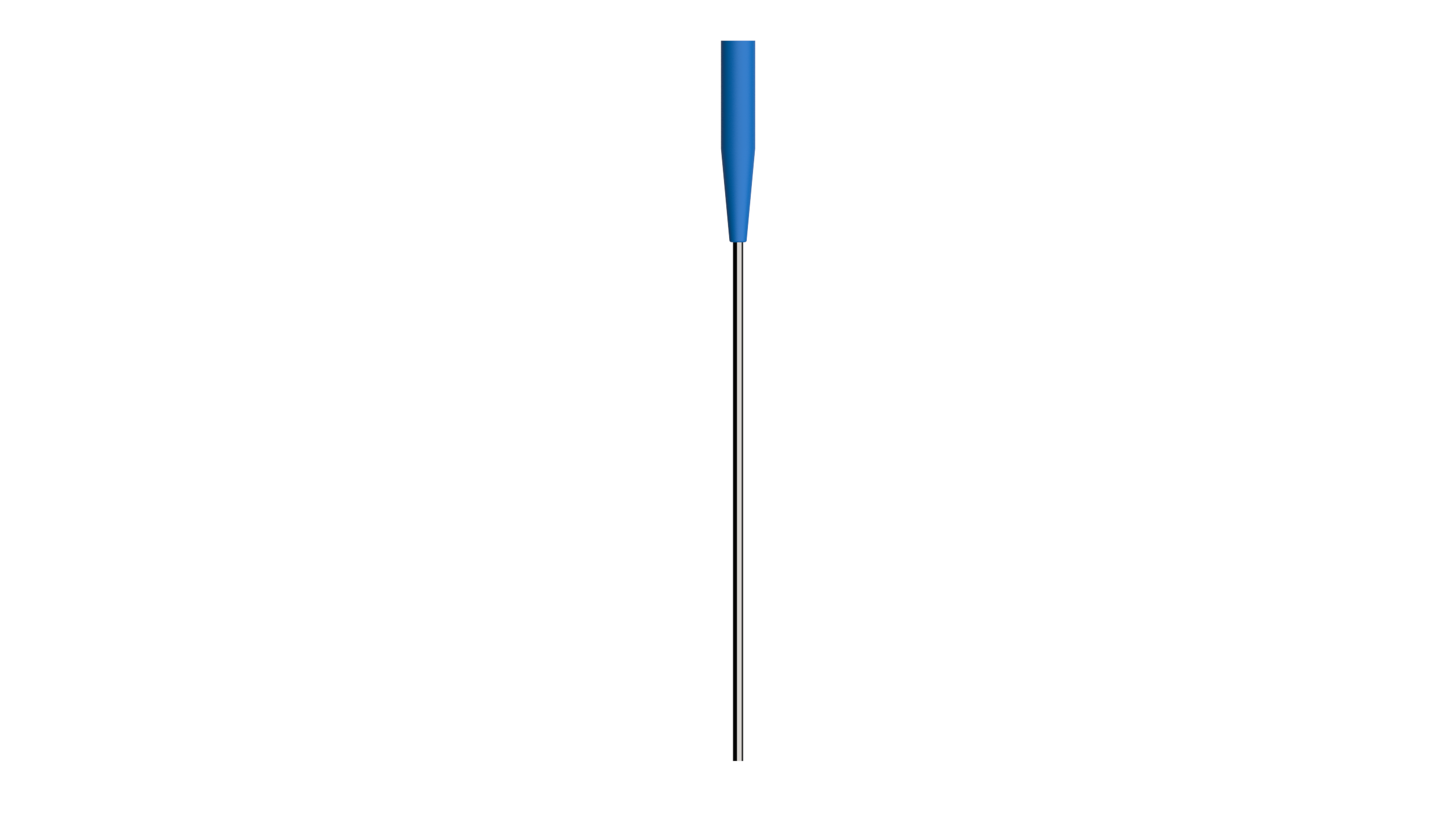

K-NS-1

Needle - Single Channel, Ø2.5mm, 120mm, Stainless Steel

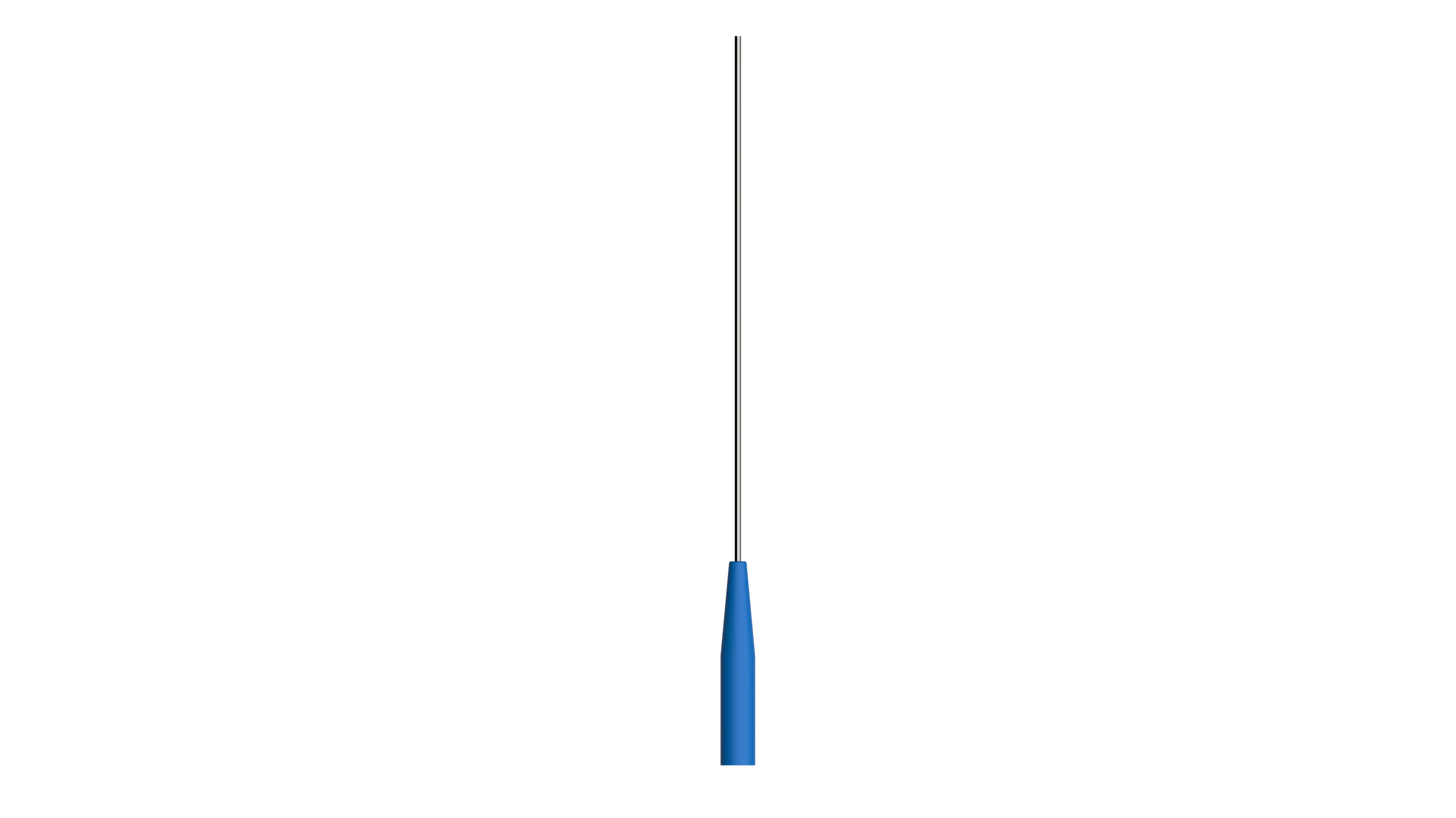

K-NS-2

Needle - Single Channel, Ø1.5mm, 120 mm, Stainless Steel

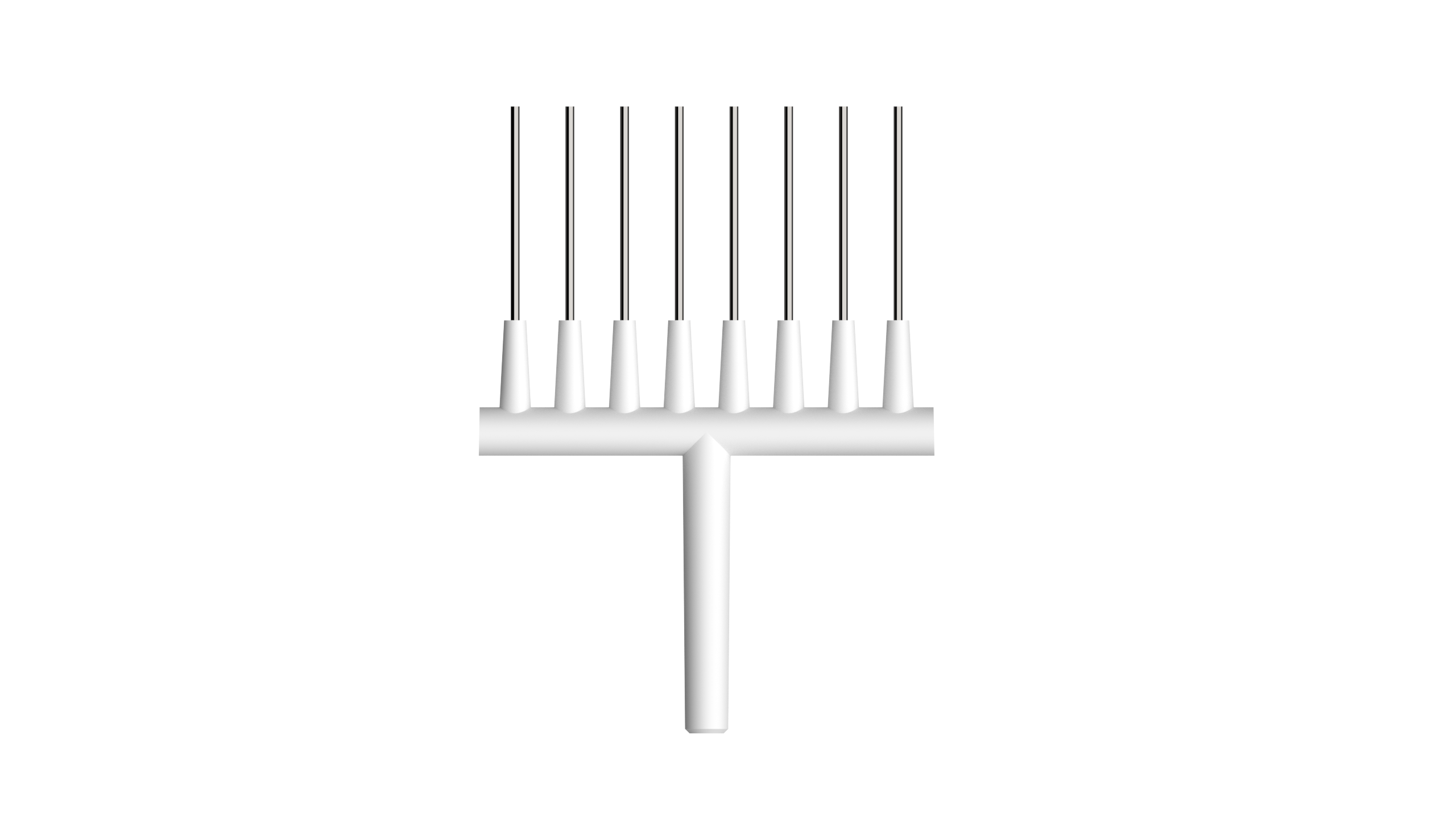

K-NE-1

Needle - Eight Channel, Ø1.5mm, Stainless Steel

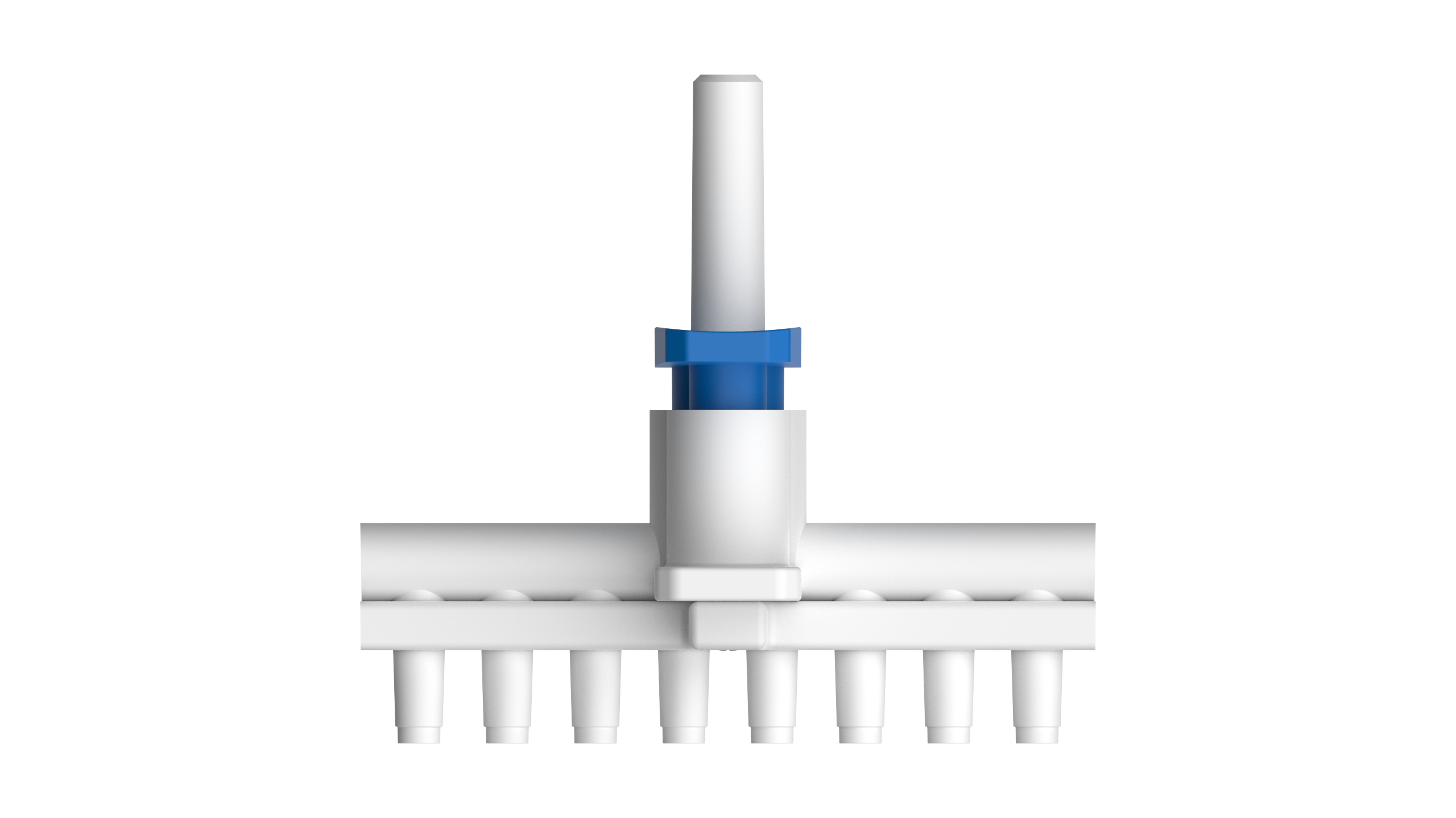

K-NE-2

Needle - Eight Channel for 200μL tip, with Ejector

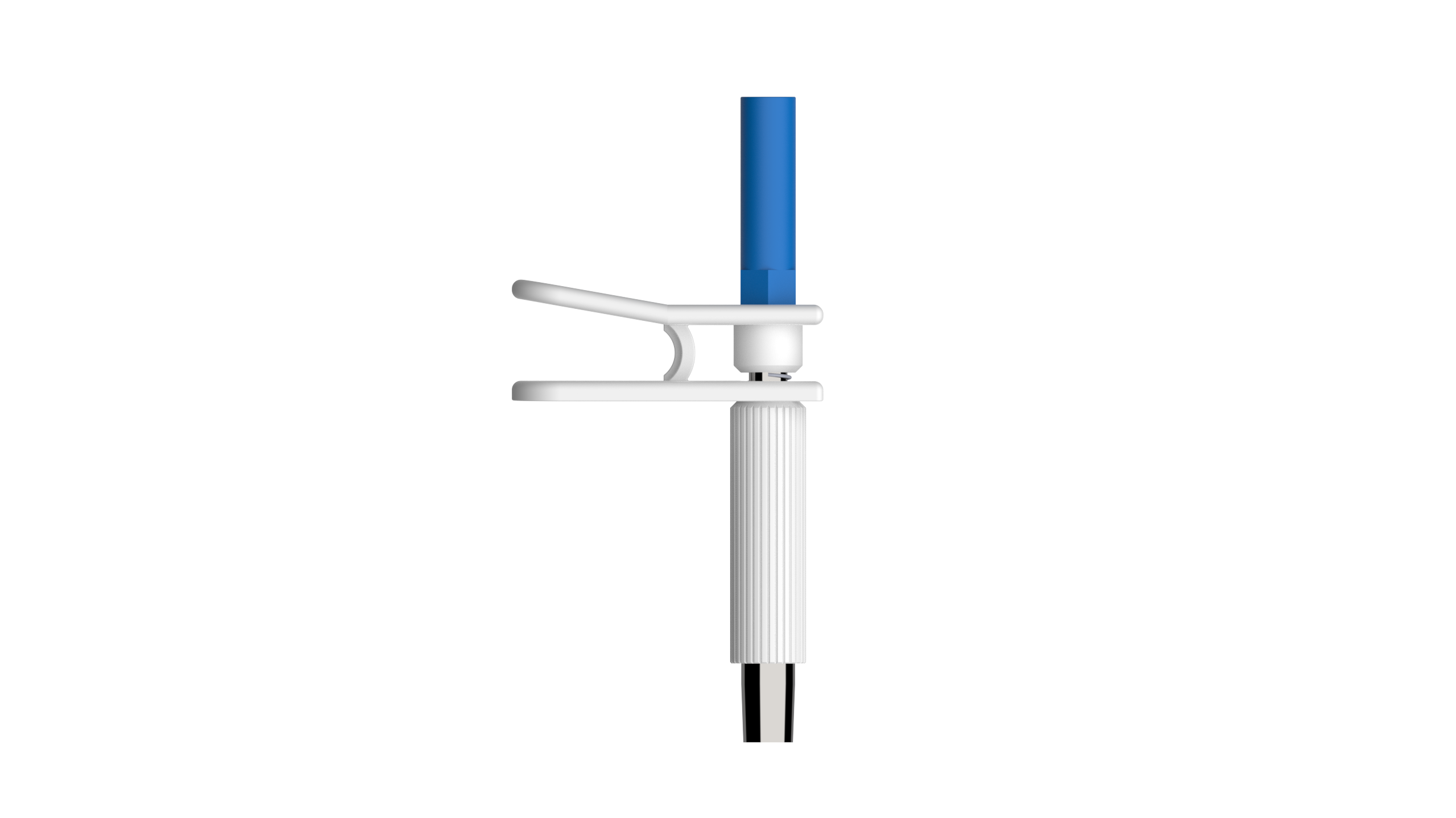

K-NO-1

Needle - 1 Channel for 200μL tip, with Ejector
K-NO-2

Needle - 1 Channel for 1000μL tip, with Ejector
