Microlit LENTUS®
for dispensing Hydrofluoric Acid, high-purity media and acids & bases for Trace Analysis

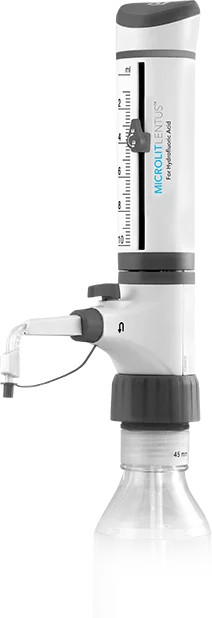

MICROLIT LENTUS® Bottle Top Dispenser (BTD) is a high precision liquid handling instrument engineered with carefully selected and tested materials for use with Hydrofluoric Acid (HF).
MICROLIT LENTUS® can precisely dispense high-purity media and acids and bases used for trace analysis.
- Available in Five Unique Volume Ranges
Enquire Now
Description
MICROLIT LENTUS® is a Bottle Top Dispenser (BTD) designed to provide precision and safety in Hydrofluoric Acid dispensing. Built by our in-house team of product design engineers, it uses Springless Valve®, an award winning technology, and Recirculation Valve for preventing loss of reagent during purging.
MICROLIT LENTUS® also features two product innovations, EasyKnob® and FlexiNozzle® that enhance its ease of use and flexibility. Designed with ergonomics and intuitive handling in mind, it exhibits excellent chemical compatibility with Hydrofluoric Acid (HF) and other reagents & chemicals to achieve precision and safety with reliability in practical laboratory environments.
HF Compatibility Test Report
Download Catalogue
Operation Manual
- Change Volume with EasyKnob® (Marker 1)
EasyKnob® is a specially designed volume adjustment knob that allows 180° rotation for easy and effortless volume setting. - Move effortlessly with a PTFE Piston (Marker 2)
The instrument is equipped with a PTFE Piston with an ETP O-Ring. It facilitates smooth and effortless movement and ensures high chemical compatibility. - Re-direct Liquids with Recirculation Valve (Marker 3)
Recirculation Valve prevents the loss of reagents during purging by re-directing them into the mounted bottle and facilitates bubble free dispensing. - Operate Jam-free with Springless Valve®
MICROLIT LENTUS® comes with an award-winning technology, Springless Valve®, that facilitates smooth and jam-free functioning. - Dispense Easily with FlexiNozzle® (Marker 4)
The instrument comes with FlexiNozzle®, an adjustable delivery nozzle. It offers a high degree of flexibility, facilitating easy dispensing in demanding laboratory conditions. - Work Flexibly with a 360° Adapter (Marker 5)
A specially designed Adapter allows 360° rotation, facilitating complete work flexibility. - Assured Quality with ISO 8655 Conformed Calibration
MICROLIT LENTUS® is calibrated in an ISO 17025 accredited laboratory according to ISO 8655 standards. A calibration certificate is included inside the product package. A calibration tool is also included for quick in-lab recalibration. - Work with a Comprehensive Volume Range
MICROLIT LENTUS® is available in five unique volume ranges.
*Refer the table in technical specifications. - Autoclaving Parameters
MICROLIT LENTUS® is fully autoclavable at 121°C and 15 psi for a duration of 10-15 minutes.
| Model No. | Vol. Range | Increment | Accuracy | CV | ||
|---|---|---|---|---|---|---|
| ±% | ±ml | ±% | ±ml | |||
| LNT-HF-2.5 | 0.25-2.5 ml | 0.05 ml | 0.5 | 0.0125 | 0.2 | 0.005 |
| LNT-HF-5 | 0.5-5 ml | 0.1 ml | 0.5 | 0.025 | 0.2 | 0.01 |
| LNT-HF-10 | 1-10 ml | 0.2 ml | 0.5 | 0.05 | 0.1 | 0.01 |
| LNT-HF-30 | 2.5-30 ml | 0.5 ml | 0.5 | 0.15 | 0.1 | 0.03 |
| LNT-HF-60 | 5-60 ml | 1.0 ml | 0.5 | 0.3 | 0.1 | 0.06 |
The error limits (Accuracy and Coefficient of Variation) mentioned above are in accordance with the nominal capacity (or maximum volume) indicated on the instrument. These are obtained by using the instrument with distilled water at equilibrium, the ambient temperature of 20 °C while operating it smoothly and steadily. The error limits are in accordance with DIN EN ISO 8655-5.
Accessories
-
Adapters
The instrument comes with five adapters that comfortably fit most laboratory reagent bottles. The available sizes are – 28 mm, 32 mm, 38 mm, 40 mm and 45 mm.
-
Extendable Tube
A Telescoping Tube that can be adjusted according to a variety of bottle sizes, is provided as an inside-the-box accessory.
Product Excellence
MICROLIT LENTUS® reflects the design philosophy of our organization, combining the best performance parameters with the best user experience for dispensing Hydrofluoric Acid (HF), high-purity media and acids and bases for trace analysis.MICROLIT LENTUS® is manufactured as per ISO 9001, ISO 13485 and ISO 17025 standards.
The product is CE certified.
